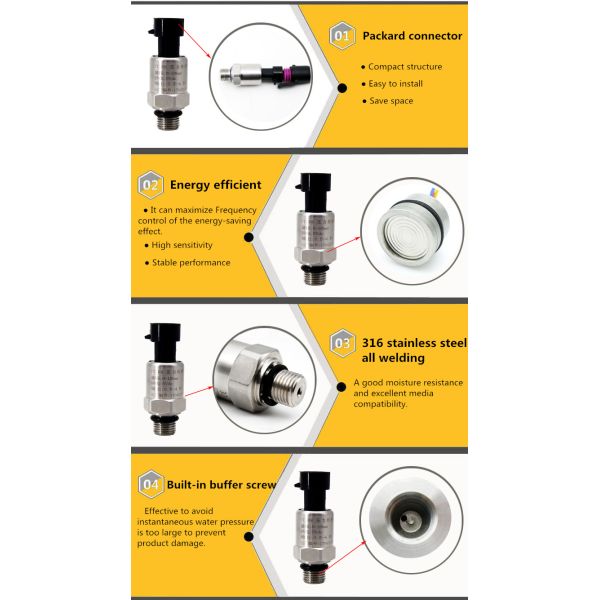

Parkard 3 Pin ,Din43650 IoT Pressure Sensor 12v Dc Air Water Pressure Sensor
Feature
● MEMS technology
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● OEM service provided
● Sillicon sensor cell employed
Applications
● Industrial process control
● Energy and water treatment
● Liquid pressure system and switch
● Pipeline pressure testing
Most NCD IoT sensors are rated for 300,000 to 500,000 transmissions until the battery becomes so fragile that it's unreliable. You can spread these transfers over 10 years, sending 50,000 transfers per year. This will allow for up to 136 transfers per day, or about 5 transfers per hour (for a 500K sensor, or 3 per hour for a 300K sensor).If you only need the battery for 3 years, you can send 166,666 transfers per year, or about 456 transfers per day (about 19 transfers per hour for a 500K sensor). As you can see, battery life is entirely up to you. By changing advanced settings in the NCD IoT sensor, you can control the lifespan. Note that the 500,000 transfer rating is for premium alkaline batteries. All NCD sensors feature high quality lithium batteries that include an ultra-wide temperature range that typically lasts in excess of 600,000 transmissions for some sensor types. These batteries weigh less than half the weight of alkaline batteries and can be used in the refrigerator! It is important to note, however, that putting the sensor in configuration mode drains the battery very quickly. Be sure to configure the sensor as soon as possible and exit configuration mode, or use an external power supply during configuration if the sensor supports it.
Speifications
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0-400 bar |
| overload pressure | 300%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA |
| accuracy | 0.5%FS (standard) 0.25%FS 0.1%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
| long term stability | <0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~70°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| temperature coefficient of zero | 0.03%FS/10°c |
| temperature coefficient of span | 0.03%FS/10°c |
| insulation resistance | >100MΩ@ 50VDC |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| material of housing | 1Cr18Ni9Ti |
| weight | 180g |
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page
Ordering guide:
In order to recommend the suitable sensor, please kindly advise us the following information
1..What is your testing medium ? oil, water, gas, waster water, or others.
2.Working temperature of the sensor ? -40°C~100°C or others
3.Pressure range ? -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others
4.Output signal? 4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other
5.Electronic connection ? DIN43650 ,Packard, Aerial plug, direct cable or others.
6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
